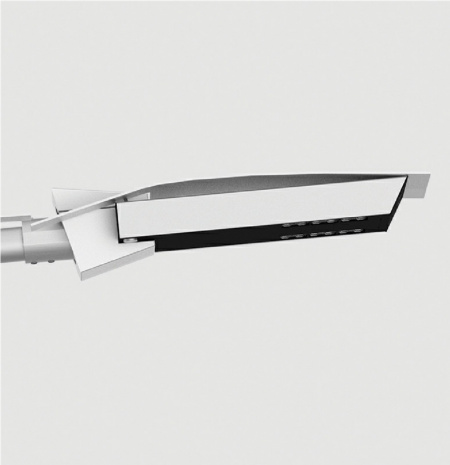

ANDROMEDA LED

Descriere

Application: motorways and expressways, urban roads, residential roads (internal),
pedestrians, parkings
Assembly: on extension arms with ø60 x 95 mm ending
Luminaire angular adjustment: in the range from -15° to 15°
Ingress protection: IP 66 for the optical part and the driver
Material: anodised aluminium alloy
Colour: inox / black
Optical system: PMMA optics, interchangeable LED module
Number of LEDs: 24 for 60W, 72W; 48 for 96W, 120W, 144W
Operating temperature range: from -40˚C to +55˚C (for 60 W, 72 W, 96 W, 120 W),
from -40˚C to +40˚C (for 144 W)
Expected useful lifetime: L90F10 – 50 000 h, L80F20 – 100 000 h
CRI: >70 for 5000K, 4000K; >80 for 3500K, 2700K
Input voltage frequency: 50 - 60Hz
Power factor: ≥0.95
Inrush current:46A / 250μs for 60W, 72W; 53A / 300μs for 96W, 120W, 144W
Luminaire ANDROMEDA LED has the possibility to connect to an external control
system via DALI interface (optionally via analog signal 1- 10V).

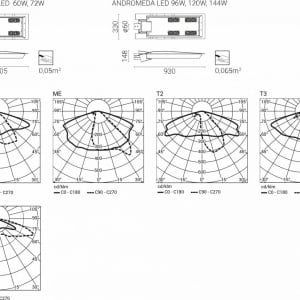

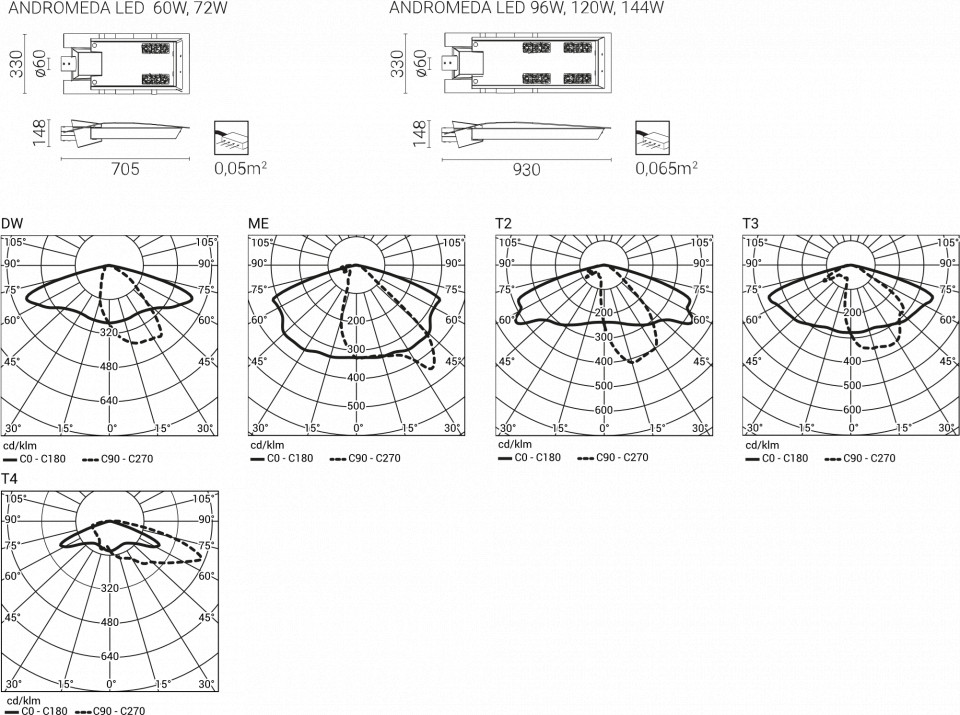

1) Symbol of chosen optical system eg. 2222034/6/T2 is ANDROMEDA LED 60 5000K with T2 optical system

Fisa Tehnica
