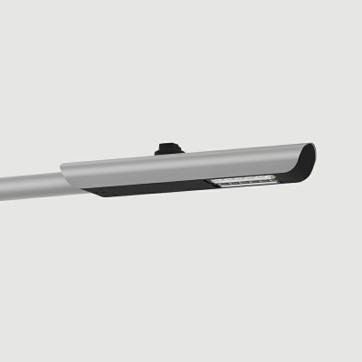

CUDDLE II LED REG NEMA

Descriere

Application: motorways and expressways, urban roads, residential roads (internal), pedestrians, parkings
Assembly: pole top mounted or on extension arms with ø60 x 100 mm ending
Luminaire angular adjustment: pole top mounted in the range from 0° to 20° by 5° or on extension arms in the range from +10° to -15° by 5°
Ingress protection: IP 66 for the optical part and the driver
Material: anodised aluminium alloy
Colour: inox / black
Optical system: PMMA optics, interchangeable LED module. PC-UV diffuser
Number of LEDs: 24 for 48W, 60W, 72W; 64 for 96W, 120W, 144W, 192W
Operating temperature range: from -40˚C to +40˚C
Expected useful lifetime: L90F10 – 50 000 h, L80F20 – 100 000 h
CRI: >70 for 5000K, 4000K; >80 for 3500K, 2700K
Input voltage frequency: 50/60Hz
Power factor: ≥0.95
Inrush current: 46A / 250µs for 48W, 60W, 72W; 80A / 175µs for 96W; 58A / 340µs for 120W, 144W; 80A / 225µs for 192W

Fisa Tehnica
