Multi Directional Drive L 2D /DMX/02
Multi Directional Drive L 2D /DMX/02
Multi Directional Drive L 2D /DMX/02
Multi Directional Drive L 2D /DMX/02
Multi Directional Drive L 2D /DMX/02
Multi Directional Drive L 2D /DMX/02
Multi Directional Drive L 2D /DMX/02
Multi Directional Drive L 2D /DMX/02

Multi Directional Drive L 2D /DMX/02

Pret la cerere
Comenzi telefonice - +40720058205+40720058205, Luni - Sambata , 8:00 - 20:00
Cod produs - SKU: 34318

Descriere

                                                        TECHNICAL DATA

DMX Channel 1 x axe Position
DMX Channel 2 x axe Fine
DMX Channel 3 x axe Speed
DMX Channel 4 x axe Function
DMX Channel 1 y axe Position
DMX Channel 2 y axe Fine
DMX Channel 3 y axe Speed
DMX Channel 4 y axe Function
Max. operating pressure bar 3.5
Water level min. mm 450
Waterlevel max. mm 650
Waterlevel Parking Position mm 650
Swing Range - Factory ° 140/140
Swing Range - adjustable ° 200/140
Swing Speed max. °/sec. 72.00
Connection Nozzle mm 38
Pressure-side connection 2 ½"
Pressure-side connection mm 64
Power consumption W 53
Rated voltage 24 V / DC
Rated current A 2.2
Power connection type Power-Box 24 V DC /01
RDM-DMX connection type DMX-Box /01
Protection class IP 68

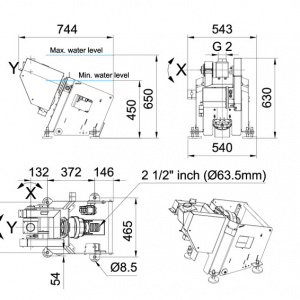

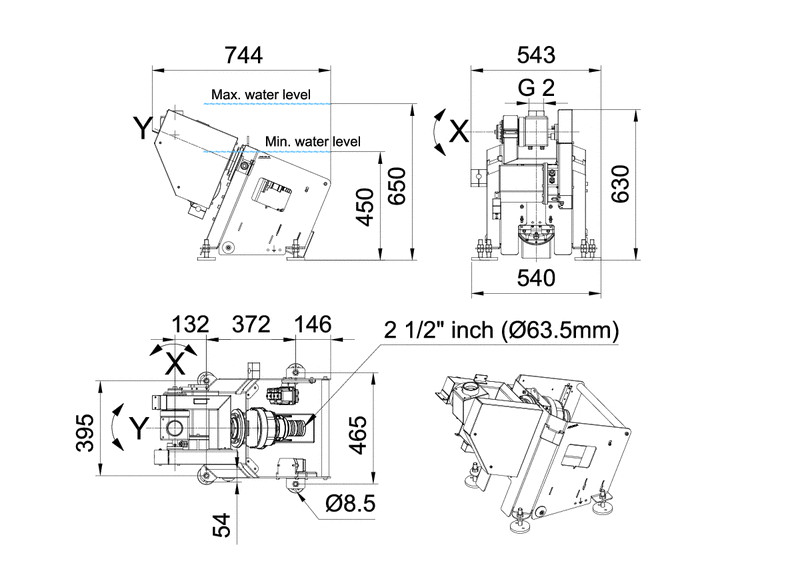

Dimensions (L x W x H) mm 744 x 543 x 630
Material Stainless steel 1.4571 (AISI 316Ti)
Net weight kg 62.80
