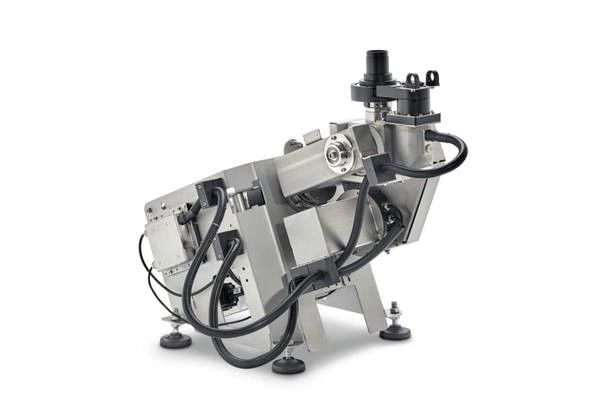

Multi Directional Drive L 3D /DMX/02
Descriere
TECHNICAL DATA
| DMX Channel 1 x axe | Position | |
|---|---|---|
| DMX Channel 2 x axe | Fine | |
| DMX Channel 3 x axe | Speed | |
| DMX Channel 4 x axe | Function | |
| DMX Channel 1 y axe | Position | |
| DMX Channel 2 y axe | Fine | |
| DMX Channel 3 y axe | Speed | |
| DMX Channel 4 y axe | Function | |
| DMX Channel 1 rotation | Position | |
| DMX Channel 2 rotation | Fine | |
| DMX Channel 3 rotation | Speed | |
| DMX Channel 4 rotation | Function | |
| Max. operating pressure | bar | 3.5 |
| Water level min. | mm | 450 |
| Power consumption | W | 79 |
| Rated voltage | 24 V / DC | |
| Rated current | A | 3.3 |
| Power consumption (added) control system | W | 79 |
| Power connection type | Power-Box 24 V DC /01 | |
| RDM-DMX connection type | DMX-Box /01 | |
| Protection class | IP 68 | |

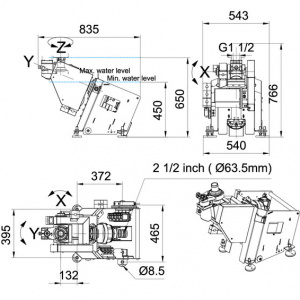

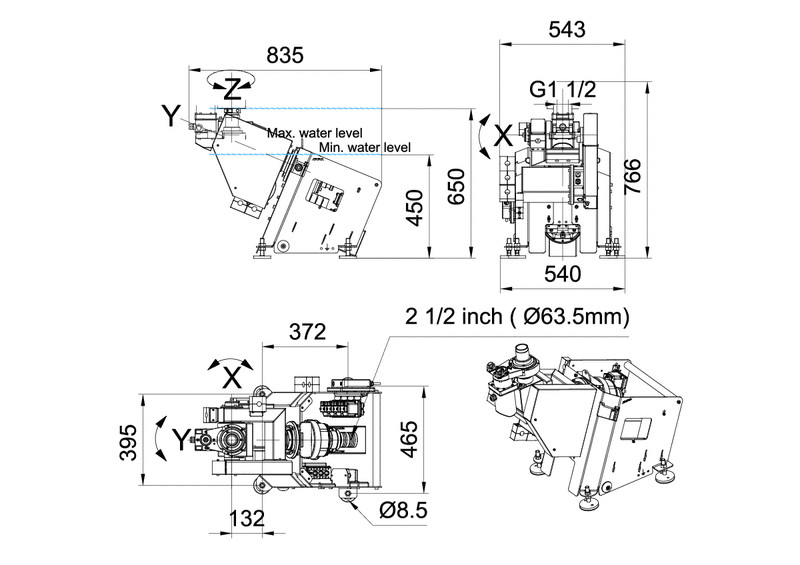

| Dimensions (L x W x H) | mm | 835 x 543 x 766 |
| Material | Stainless steel 1.4571 (AISI 316Ti) | |
| Net weight | kg | 72.10 |
